TQ-FM-100C+
Keywords:
Category:
Product Introduction

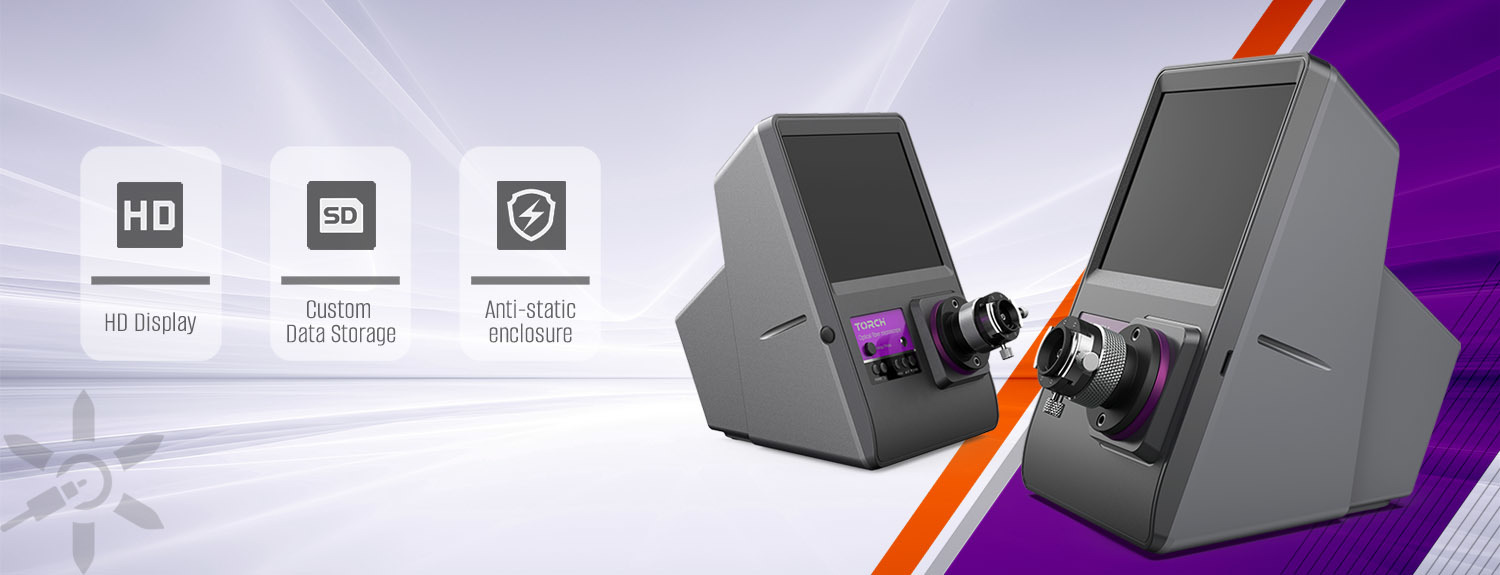

The TQ-FM-100C+ is a new generation of all-in-one desktop fiber optic end-face microscope, specifically designed for fiber optic end-face inspection. It features a high-definition, high-resolution TFT display screen, allowing operators to easily inspect the end-face.
Product Features
A. Better detection of FC/SC/LC/MPO and other fiber end faces
B. High-definition 8-inch TFT screen
C. High resolution less than 0.5μm
D. Adjustable mechanical structure in X, Y, and Z axes
E. 200x or 400x magnification
F. Anti-static interference design
G. Convenient and practical adapter head storage box design
H. The display screen adopts a narrow-border design to increase the screen ratio
I. Built-in lithium battery optional
J. Memory card optional
K. Handheld testing handle (TQ-FVM series) optional
Partial Product Parameters
| Project | Parameters |
| Lens Magnification | 80X, 200X or 400X |
| Resolution | 0.5um |
| CMOS | 200W Pixels |
| 8-inch Display | 1024X768 Resolution LCD |
| Power Supply | +12V, 1.5A |
| Dimensions | 198(W)X308(L)X342(H)mm |
| Operating Temperature | -20℃~+50℃ |
Contact technical or sales person for consultation.
Consulting hotline:
After receiving your message and information, our sales or technical personnel will contact you.
Your information will be kept confidential;
Some products can be customized according to your needs.
