TQ-4017A Integrated Data Network Tester
Keywords:
Category:
Product Introduction

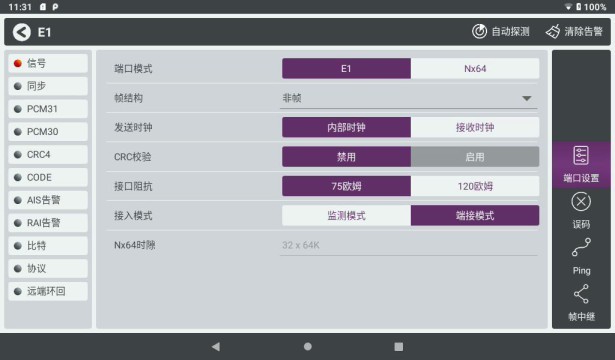

| E1 Test Interface | Ethernet Test Interface |
 |  |
The TQ-4017A is a powerful, Android-based comprehensive testing instrument for government and enterprise dedicated lines. It can handle professional testing tasks for various service interfaces in the field, and also supports the use of office application software and APP tools, making it a comprehensive and ideal intelligent testing instrument for engineers and maintenance personnel.
Product Features
A. Powerful Multi-Port, Multi-Functional Data Processing Capabilities:
Includes E1, V35, 10M/100M/1000M dual fiber/dual electric Ethernet, 10G dual fiber Ethernet, optical power meter, OTDR, red light source, WIFI, fiber optic end face inspection instrument, full network access SIM card, Bluetooth, GPS, and other interface testing functions.
B. Featured Software
Supports operator work order processing, wireless mobile internet access, result signature note prototype saving, remote control operation, and cloud upgrade service functions.
C. Other Advantages:
Ultra-high-definition 7-inch capacitive screen, simple interface operation, easy to carry, full Chinese display, for engineering and field maintenance personnel to perform on-site installation, debugging and maintenance, saving a lot of time.
D. Equipped with a Console interface, it can directly connect to routers and switches for on-site operation and configuration, eliminating the need to carry a PC.
Test Function Description
Test Item | Test Item Description |
E1 Test | E1 Receive Frequency Measurement |
Code / BPV Error (Error Count and Ratio) | |
Frame Error ( FAS 、 MFAS and CRC-4 Error Count and Error Ratio) LOS 、 Sync Loss, LOF 、 AIS 、 FAS 、 RAI and MFAS | |
Second Count G.821 Analysis, G.826、 M.2100/ 550 Measurement, E-bit Error Count and Ratio | |
Support PPP 、 HDLC Analysis of Layer 2 routing protocols | |
Automatic Router Detection IP Address | |
Fast Traffic IP Ping Testing and Loopback Function Ping | |
| |
V.35 Test | Test Rate: N x 64Kbps (N = 1 to 31) |
BERT Bit Error Rate Test Compliant G.821 Analysis | |
Support PPP 、 HDLC Analysis of Layer 2 routing protocols | |
Supports link IP Automatic address detection and fast traffic IP Ping Function testing | |
| |

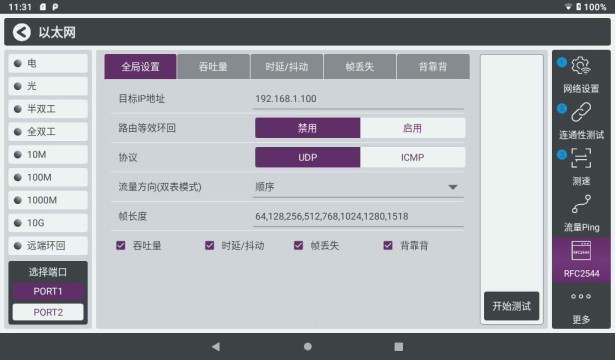

10/100/1000M/10G 10 Gigabit Ethernet Test | Gigabit optical port, dual 10 Gigabit optical port, dual electric port, optical port supports 850nm/1300nm/1310nm/1550nm |
Automatic Identification 10/100/1000M/10G Network Service | |
Intelligent Detection and Loopback | |
Port Location Function | |
Frame Capture Function | |
Web Browsing Test / Website Speed Test Function | |
Intelligent Cloud Speed Test Function and Cloud Server Function | |
IP Discovery | |
DHCP Automatic Acquisition IP Address or manual configuration IP Address | |
RFC2544 (Throughput, Delay, Packet Loss Rate, Back-to-Back) Function Test | |
Speed Test (One-click completion of receiving / Transmission rate, delay, jitter, packet loss, error and other key indicators measurement) | |
Line Rate PING | |
MTU Detection | |
Route Trace Function | |
ARP Scan | |
7*24 Hour Traffic Monitoring Function | |
| |
OTDR Test | Light Source Wavelength ( nm ): 1310/1550nm |
Fiber Type: 9/125 m | |
Maximum Measurement Distance: 80km | |
Reflection event blind zone: less than 1.5m | |
Distance accuracy: ±( 1m+*0.1 % * distance) | |
Pulse width: Auto adjustment | |
Dynamic range: 26dB | |
Dynamic range: 26dB
| |
Graphical interface: Supported | |
Detection of overall loss of the current line, event point loss, and attenuation per kilometer: Supported | |
| |
OTN Test | Interface and rate: OTU1 ( 2.7G ), OTU2 ( 10.7G ), OTU2e ( 11.1G ) |
Interface type: SFP+/SFP | |
Test items: Bit error rate test ( BERT ), delay, traffic PING | |
Clock: Internal clock | |
Standard: Compliant with ITU-TG.709 | |
OTN Alarm detection | |
OTN Bit error rate, error detection | |
Bit error rate performance analysis: Supported G.8201/M.2401 | |
Bit error rate test pattern (detection and generation): PRBS31 , normal or reversed. Supports user-defined test patterns | |
Overhead: Supports overhead viewing and editing | |
| |
Optical power test | Test wavelength: 850nm/1300nm/1310nm/1550nm/1625nm |
Supported interfaces: FC/SC/ST/LC | |
Test range: +10~ -70dBm | |
Detector type: InGaAs | |
Accuracy: ± 0.01dB | |
| |
Red light source test | Operating wavelength: 650nm LD |
Interface type: 2.5mm Universal connector (supports FC/SC/ST) | |
Input power: > 5mW | |
Test distance: greater than 8km | |
Modulation mode: CW/270Hz/1KHz/2K | |
Product Performance Parameters
General Parameters | |
| Test Port | Datacom Data Interface: V.35/V.24 Functional Test |
| E1 Interface: E1 Link, compliant with G.703(E1) test function (75/120 ohms) | |
| Ethernet Interface: 2*10/1000/1000M electrical ports, 2*100M/1000M/10G optical ports | |
| Optical Power Meter Interface | |
| OTDR Interface | |
| Display | High-resolution 7-inch color LCD display with LED backlight |
| Storage | Can store and query 1000 test results, supports printing |
| Battery Capacity | 5000mAh, 12.6V smart lithium battery |
| Battery Life | Approximately 4 hours (laboratory data, may vary depending on application scenarios and usage conditions) |
| Charging Time | Approximately 5 hours |
| Charger Specifications | 12.6V@3A, 90~265VAC, 50-60Hz |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -20℃~+70℃ |
| Operating Humidity | 5%～90% (non-condensing) |
| Product Dimensions | 240X160X 60 mm |
Contact technical or sales person for consultation.
Consulting hotline:
After receiving your message and information, our sales or technical personnel will contact you.
Your information will be kept confidential;
Some products can be customized according to your needs.
