TQ-AFVM-10B
Keywords:
Category:
Product Introduction

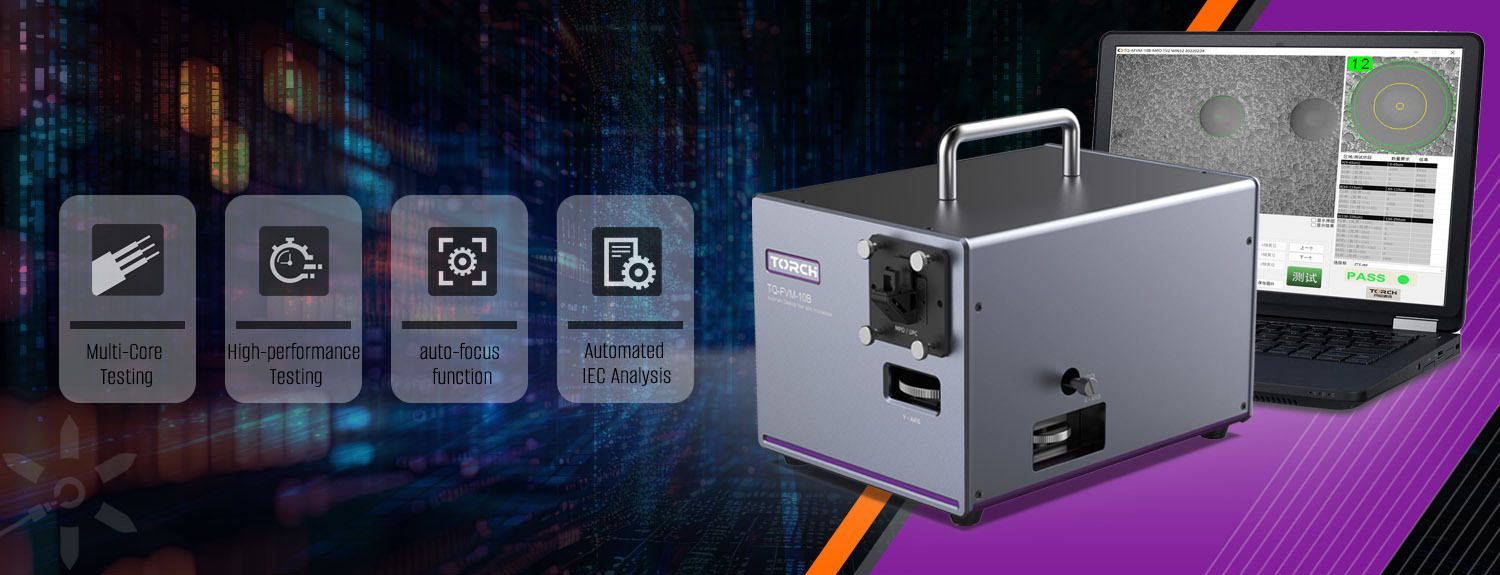

TQ-AFVM-10B is a high-efficiency, multi-channel end-face detection device developed by Tongqi Communication. It is suitable for detecting multi-channel MPO/MTP jumpers and modules such as 12/16 cores. Testing all end faces of a 12-core MPO module takes only 12 seconds, improving production efficiency by more than 75%! At the same time, it generates test reports for easy re-inspection and verification.
Product Features
A. Multi-core Inspection: 12/16-core MPO/MTP fiber optic patch cords/MPO modules
B. Magnification: 200X or 400X
C. High Definition: >0.54um
D. High-speed autofocus: 13 seconds (16 cores)
E. High-speed automatic analysis: PASS/FAIL
F. Repeatability: 98%
Product Parameters
| Item | Parameter | Item | Parameter |
| Optical Magnification | 10X | Supported System | WINDOWS 7/8/10 |
| Magnification | 200X | Dimensions | 170X235X158 mm |
| Lens Resolution | 0.54um | Weight | Net weight 3.55Kg/Gross weight 5.25Kg |
| CMOS Resolution | 2 um | Rated Voltage | 110V~220V |
| Focusing Method | X/Z Autofocus and Manual | Volume | -10℃~+50℃ |
| Analysis Function | Automatic (IEC613000-3-35/Customer Defined) | Weight | -20℃~+60℃ |
| Supported Adapters | MPO/UPC、MPO/APC、LC/UPC、LC/APC、CS/UPC、SR2/APC | ||
Contact technical or sales person for consultation.
Consulting hotline:
After receiving your message and information, our sales or technical personnel will contact you.
Your information will be kept confidential;
Some products can be customized according to your needs.
