CLE-MAC-03
Keywords:
Category:
Product Introduction

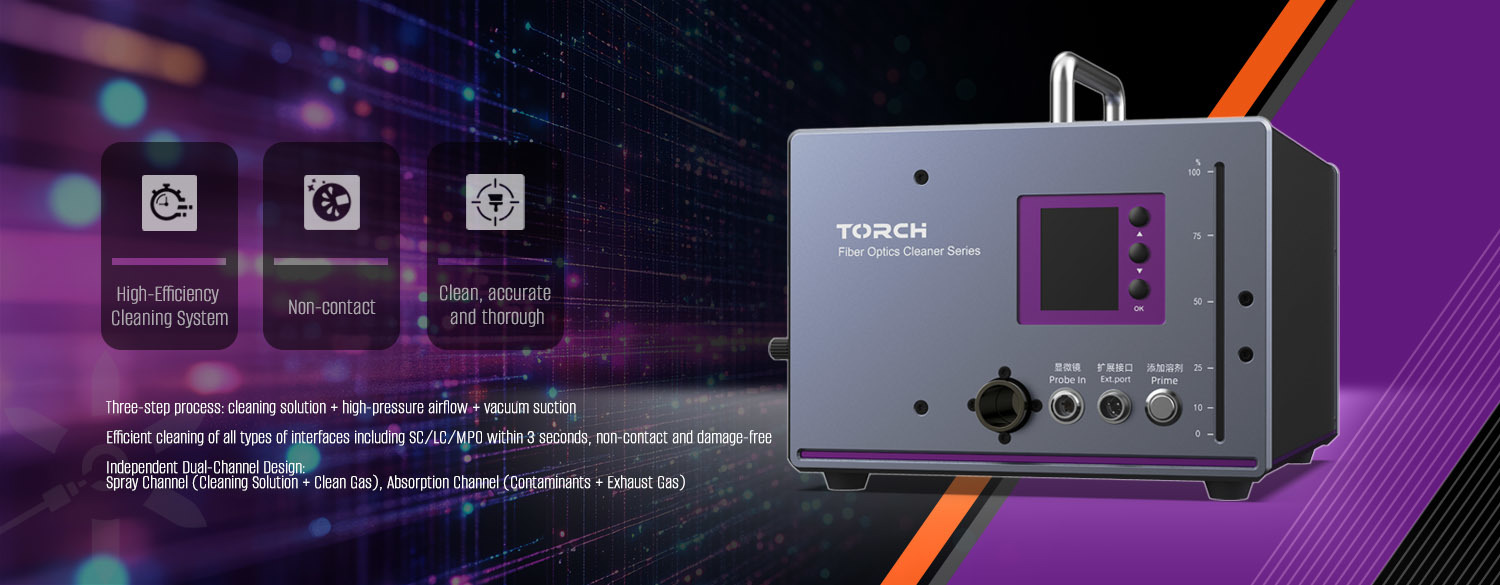

CLE-MAC-03 is a cost-effective fiber optic end face cleaning device independently developed by Tongqi Communication. It can quickly and efficiently clean the end faces of female fiber optic connectors, solving the problem of cleaning the end faces of female fiber optic connectors, ensuring connection without foreign objects, and achieving low insertion loss and high return loss optical characteristics during fiber optic docking.
Product Features
A. High-efficiency, non-contact, damage-free cleaning of fiber optic connector end faces
B. Compatible with almost all connectors
C. Equipped with an LED display to record the number of cleanings and display the current operating mode, liquid volume, air injection time, and suction time
D. The device can be preset with 9 operating modes for easy cleaning of different end faces
E. Low cleaning cost, suitable for mass production
F. Cleaning solvent is MSDS certified
G. Contains an internal air filter
H. The device has two independent channels: a jetting channel (liquid solution + clean gas) and an absorption channel (contaminants + waste gas)
I. Optional installation of a fiber optic microscope detection probe and test software
Cleaning Effect Comparison
Product Specifications
| Item | Parameter |
| Air Source | External, compressed air or nitrogen |
| Supply Air Pressure | 4Kg-6Kg |
| Solution Consumption | At least 9500 cleaning cycles per full tank |
| Cleaning Time | 2 seconds |
| Maintenance | Replace the filter after 10000 cleaning cycles (or after using 10 tanks of solvent). Two filter cartridges need to be replaced each time. |
| Video Output | PAL (BNC connected to the video microscope) |
| Operating Temperature | +15℃~+25℃ |
| Storage Temperature | +10℃~+30℃ |
| Power Supply | 100VAC-240V AC (50-60HZ) 2AMP |
| Dimensions | Unit: 230mmX210mmX150mm |
| Weight | 5Kg |
Contact technical or sales person for consultation.
Consulting hotline:
After receiving your message and information, our sales or technical personnel will contact you.
Your information will be kept confidential;
Some products can be customized according to your needs.
